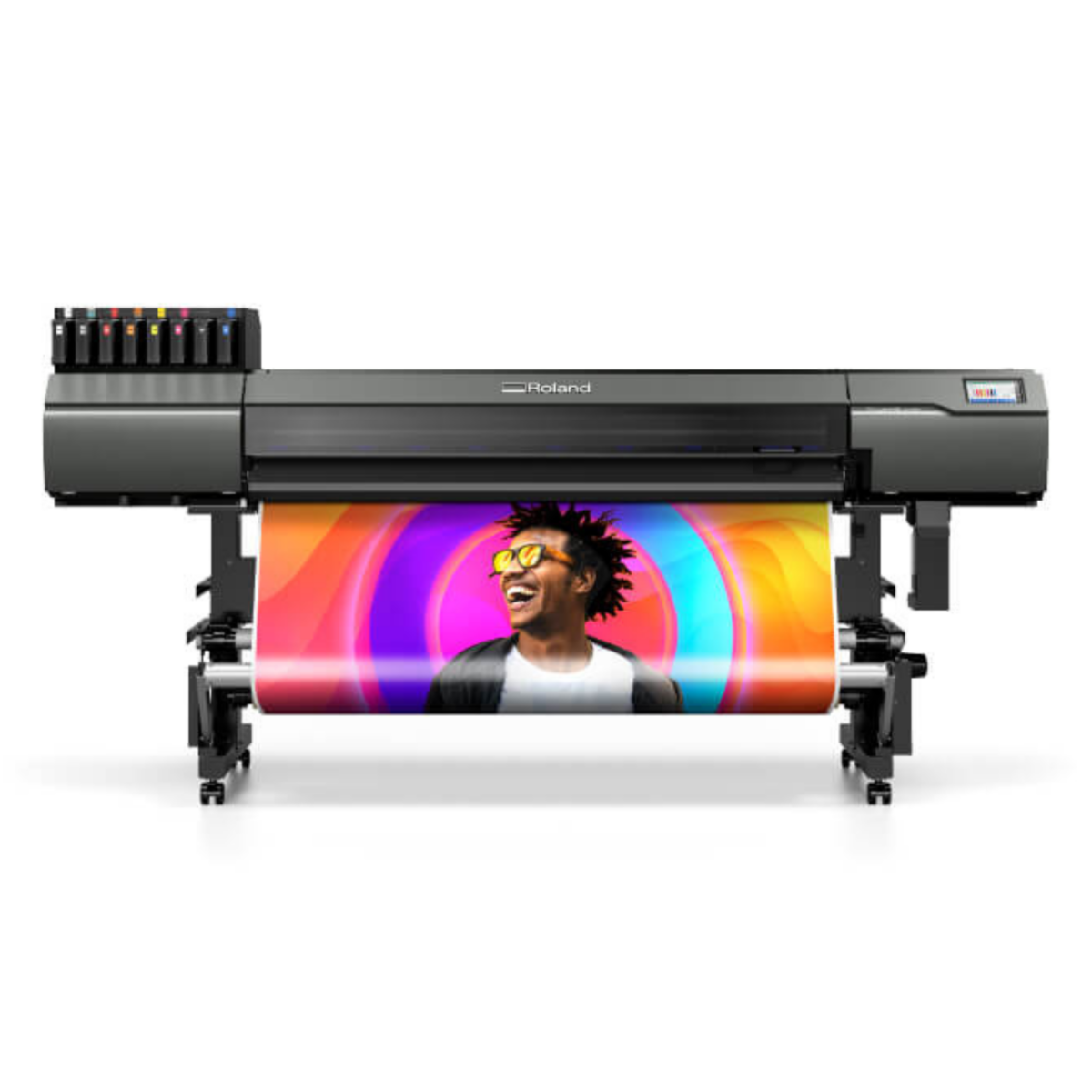

Roland TrueVIS LG 640/540/300 UV
Άμεση παραλαβή
TrueVIS LG UV Printer/Cutters – Σειρά LG – UV Εκτυπωτικά/Κοπτικά
- Εκτύπωση Yψηλής Tαχύτητας
- Απλό Calibration Υλικών
- Ενσωματωμένο Take–up
- Οθόνη Αφής
Διαθέσιμα Μοντέλα (Πλάτος Υλικού)
162,5cm / 137,1cm / 76,2cm
Μελάνια
CMYK, Gloss, Λευκό, Κόκκινο, Πορτοκαλί, Primer
750 ml
Χαρακτηριστικά
Υψηλή Ταχύτητα Εκτύπωσης
Οθόνη Αφής
Εύκολο Calibration
Take-up
Περιγραφή
| Model | LG-640 | LG-540 | LG-300 | ||||
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 335 to 1625 mm (13.2 to 64 in.) | 295 to 1371 mm (11.7 to 54 in.) | 182 to 762 mm (7.2 to 30 in.) | |||
| Thickness | Max. 1.0 mm (39.3 mil) with liner, for printing Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting |
||||||
| Roll outer diameter | Max. 250 mm (9.8 in.) | ||||||
| Roll weight | Max. 45 kg (99 lb.) | Max. 35 kg (77 lb.) | Max. 30 kg (66 lb.) | ||||
| Core diameter | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||||||
| Printing / cutting width 1 | Max. 1600 mm (62.9 in.) | Max. 1346 mm (52.9 in.) | Max. 736 mm (28.9 in.) | ||||
| Ink | Type | ECO-UV (EUV5P) 750ml pouch | |||||
| Colours | Eight Colours (Cyan, Magenta, Yellow, Black, Gloss, Primer, White, and Red) Eight colours (Cyan, Magenta, Yellow, Black, Primer White, Orange, and Red) Eight colours (Cyan, Magenta, Yellow, Black, Gloss, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, White, Orange, and Red) Seven colours (Cyan, Magenta, Yellow, Black, Gloss, Primer, and White) Six colours (Cyan, Magenta, Yellow, Black, Gloss, and White) Four colours (Cyan, Magenta, Yellow, and Black) |
||||||
| Ink curing unit | Built-in UV-LED lamp | ||||||
| Print resolution (dots per inch) | Max. 1200 dpi | ||||||
| Cutting speed | 10 to 300 mm/s (0.39 to 11.8 in./s) | ||||||
| Blade force 2 | 30 to 500 gf | ||||||
| Blade | Type | Roland CAMM-1 series blade | |||||
| Offset | 0 to 1.500 mm (0 to 59 mil) | ||||||
| Software resolution (when cutting) | 0.025 mm/step (0.98 mil/step) | ||||||
| Media heating system 3 | Front heater set temperature: 30 to 55 ℃ (86 to 131 °F) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 6.5/3.2 A | 100-120/220-240 Va.c. 50/60 Hz 5.7/2.6 A | ||||
| Power consumption | During operation | Approx. 800 W | Approx. 800 W | Approx. 650 W | |||
| Sleep mode | Approx. 85 W | ||||||
| Acoustic noise level | During operation | 63 dB (A) or less | |||||
| During standby | 58 dB (A) or less | ||||||
| Dimensions (with stand) | 2902 mm x 748 mm x 1412 mm (114.3 in. x 29.5 in. x 55.6 in.) | 2648 mm x 748 mm x 1412 mm (104.3 in. x 29.5 in. x 55.6 in.) | 2038 mm x 748 mm x 1412 mm (80.3 in. x 29.5 in. x 55.6 in.) | ||||
| Weight (with stand) | 209 kg (461 lb.) | 179 kg (395 lb.) | 168 kg (371 lb.) | ||||
| Environment | During operation 4 | Temperature : 20 to 32 ℃ (68 to 89.6 °F), Humidity: 35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 5 to 40 ℃ (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation) | ||||||
