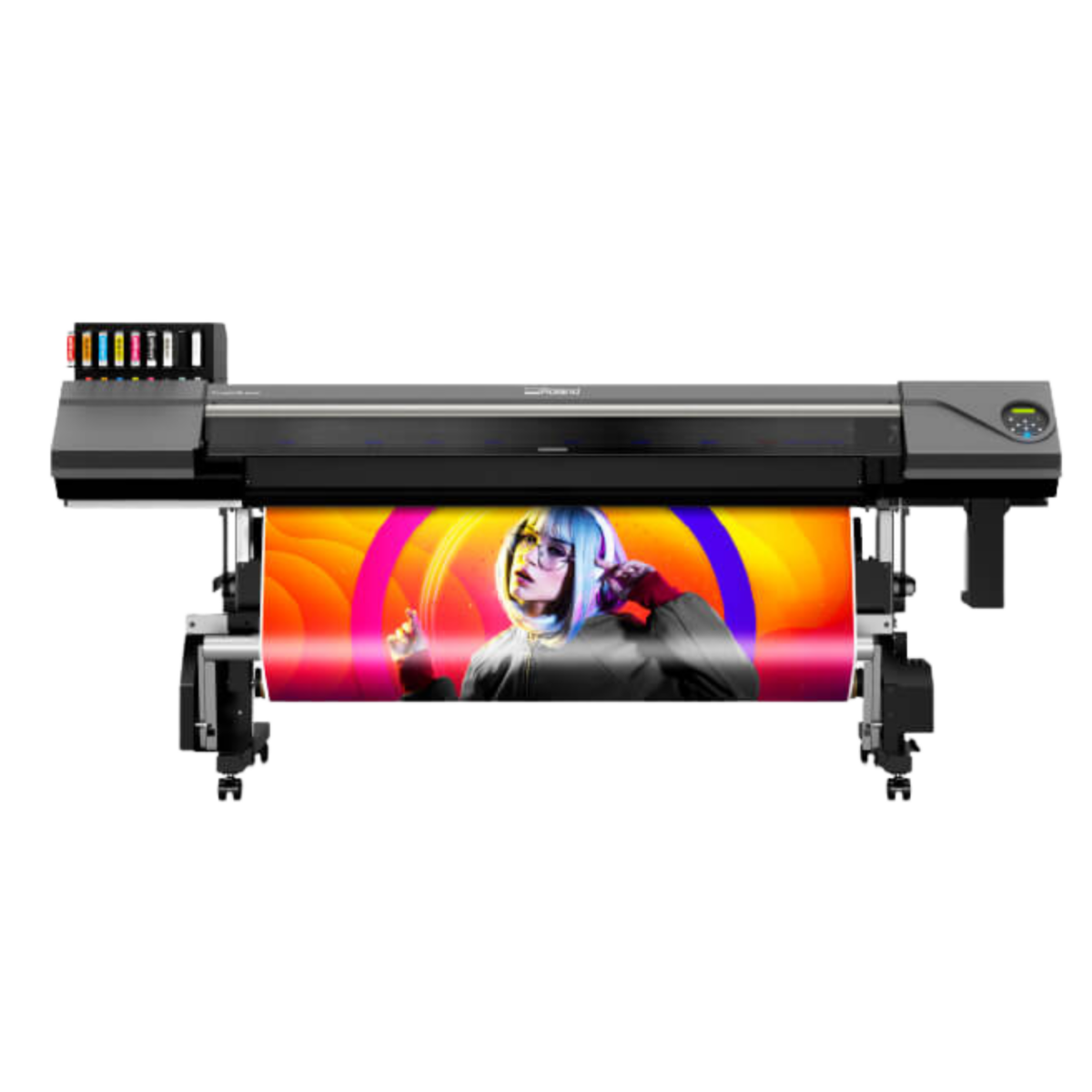

Roland TrueVIS MG 640/300 UV

Άμεση παραλαβή





TrueVIS MG UV Printer/Cutters – Σειρά MG – UV Εκτυπωτικά/Κοπτικά

Διαθέσιμα Μοντέλα (Πλάτος Υλικού)

162,5 cm / 76,2cm

Μελάνια

CMYK, Gloss, Λευκό, Κόκκινο, Πορτοκαλί, Primer

220 / 500 ml

Επαγγελματικά Χαρακτηριστικά

Τεντωτήρας για λεπτές μεμβράνες
Τραπέζι Επέκτασης για Ημιάκαμπτο Χαρτί

Κατηγορία:

Περιγραφή

Model MG-640 MG-300
Printing method Piezo ink-jet method
Media Width 210 to 1625 mm (8.3 to 64 in.) 182 to 762 mm (7.2 to 30 in.)
Thickness Max. 1.0 mm (39.3 mil) with liner, for printing
Max. 0.4 mm (15.7 mil) with liner and 0.22 mm (8.6 mil) without liner, for cutting
Roll outer diameter Max. 210 mm (8.2 in.)
Roll weight Max. 40 kg (88 lb.) Max. 25 kg (55 lb.)
Core diameter 76.2 mm (3 in.) or 50.8 mm (2 in.)
Printing / cutting width 1 Max. 1600 mm (62.9 in.) Max. 736 mm (28.9 in.)
Ink  Type ECO-UV (EUV5) 220 ml cartridge (white)
ECO-UVS 220 ml cartridge (cyan, magenta, yellow, black, white)
ECO-UV (EUV5) 500 ml cartridge (cyan, magenta, yellow, black, red, orange, gloss, primer)
Colours Eight colours (cyan, magenta, yellow, black, red, orange, white, gloss)
Eight colours (cyan, magenta, yellow, black, red, orange, white)
Seven colours(cyan, magenta, yellow, black, red, orange, white) and primer
Seven colours(cyan, magenta, yellow, black, red, white, gloss) and primer
Six colours(cyan, magenta, yellow, black, white, gloss) and primer
Six colours(cyan, magenta, yellow, black, white, gloss)
Four colours(cyan, magenta, yellow, black)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Or and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Or and Gl)
Shrink solution; EUVS (CMYK and Wh) with EUV5 (Re, Pr and Gl)
Shrink solution; EUVS (Wh) with EUV5 (CMYK, Re, Pr and Gl)
Ink curing unit Built-in UV-LED lamp
Print resolution (dots per inch) Max. 1440 dpi
Cutting speed  10 to 300 mm/s (0.39 to 11.8 in./s)
Blade force 2 30 to 500 gf
Blade   Type Roland CAMM-1 series blade
Offset 0 to 1.500 mm (0 to 59 mil)
Software resolution (when cutting) 0.025 mm/step (0.98 mil/step)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-240 Va.c. 50/60Hz 2.8 A 100-240 Va.c. 50/60Hz 2.7 A
Power consumption During operation  Approx. 250 W Approx. 240 W
Sleep mode 40 W
Acoustic noise level During operation  63 dB (A) or less
During standby  53 dB (A) or less
Dimensions (with stand)  2819 (W) x 781 (D) x 1316 (H) mm (111 [W] x 31 [D] x 52 [H] in.) 1945 (W) x 781 (D) x 1316 (H) mm (77 [W] x 31 [D] x 52 [H] in.)
Weight (with stand) 163 kg (360 lb.) 125 kg (276 lb.)
Environment During operation 3 Temperature: 15 to 32 °C (59 to 89.6 °F), fumidity: 20 to 80 %RH (no condensation)
Not operating Temperature : 5 to 40 °C (41 to 104 °F), Humidity: 20 to 80 % RH (no condensation)
